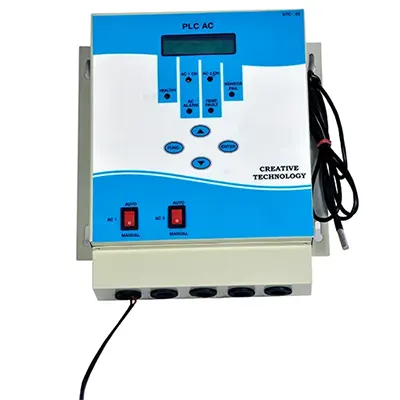

Brand	Creative Technology
Model Name/Number	TT-02
Supply Voltage	230 volts, 50 hz (+/- 15%)
Country of Origin	Made in India
Contact Ratings	30 amp at 230 volt for compressor and 5 amp at 230 volt for alarm
Sensor Range	0.1 Degree C to 50 Degree C
Resolution	0 .1 Degree C
Temperature Sensor	NTC 10K @25C sensor cable length 2.75 Mtr.

Features:

It controls upto 2 Air Conditioners
Separate phase supply for each AC
4 Digit 7 segment LED Display
Precise temperature sensing by Accurate Temperature Sensor
Time sharing for compressor to share load equally
Separate alarm relay contact for high temperature
Alarm contact for sensor failure
Password protection
Various set points are site suitable
Sensor fail more to keep on & off cycle of one of the AC through sensor fail on/off time settings
Fire input via potential free point to switch off the AC in case of fire

Indication:

Keypad:

SET- To enter in to function mode/ to view next parameter set point
UP- To increment the value of set point
Down - To decrement the value of set point
Enter - To come out of the function mode and accept the password and other value if changed
